Product Name : SEMS screws
Product Description

Features:

All type & material of washers are available, such as

 spring lock washers, flat (plain) washers, ext-tooth / int-tooth lock washers, square washers, conical washers, wave washers

* Various washer material:

   1) Metal: steel, stainless steel, brass ….

   2) Non-metal: plastic, rubber, fiber ….

* Thread size: from 1.4mm ~12mm

* In accordance with all international standard: JIS B1188. B1187, DIN6900, 6901(washer DIN6902, DIN6904, DIN6905, DIN6907, DIN6908…..), ASME B18.13, ASME B18.13.1M, ISO ….

* Per customers's design
Product Introduction

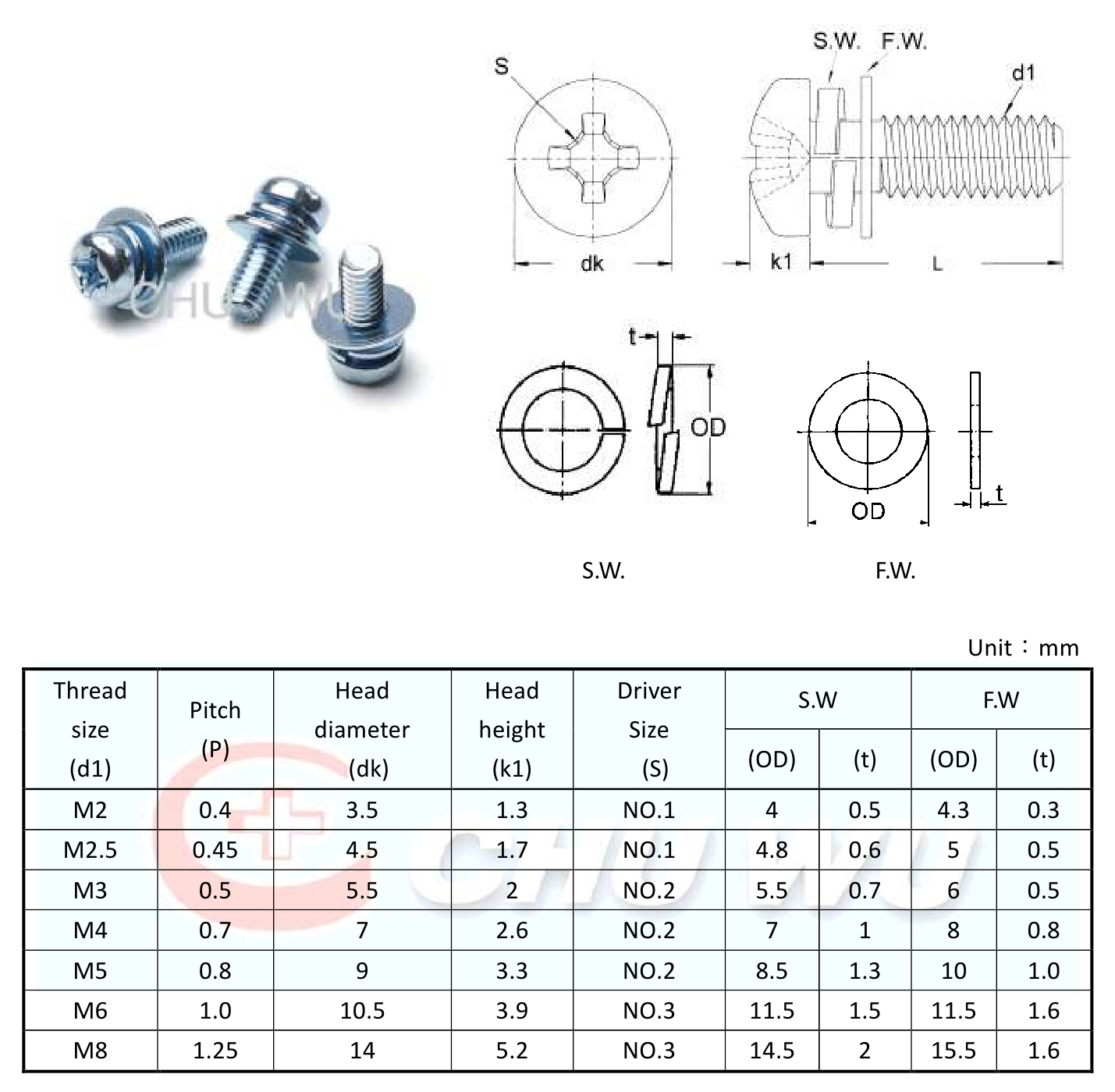

Pan head screw sems with spring lock washer and flat washer according to JIS B1188
proimages/sems_screw/JIS_B1188_sems-1.jpg

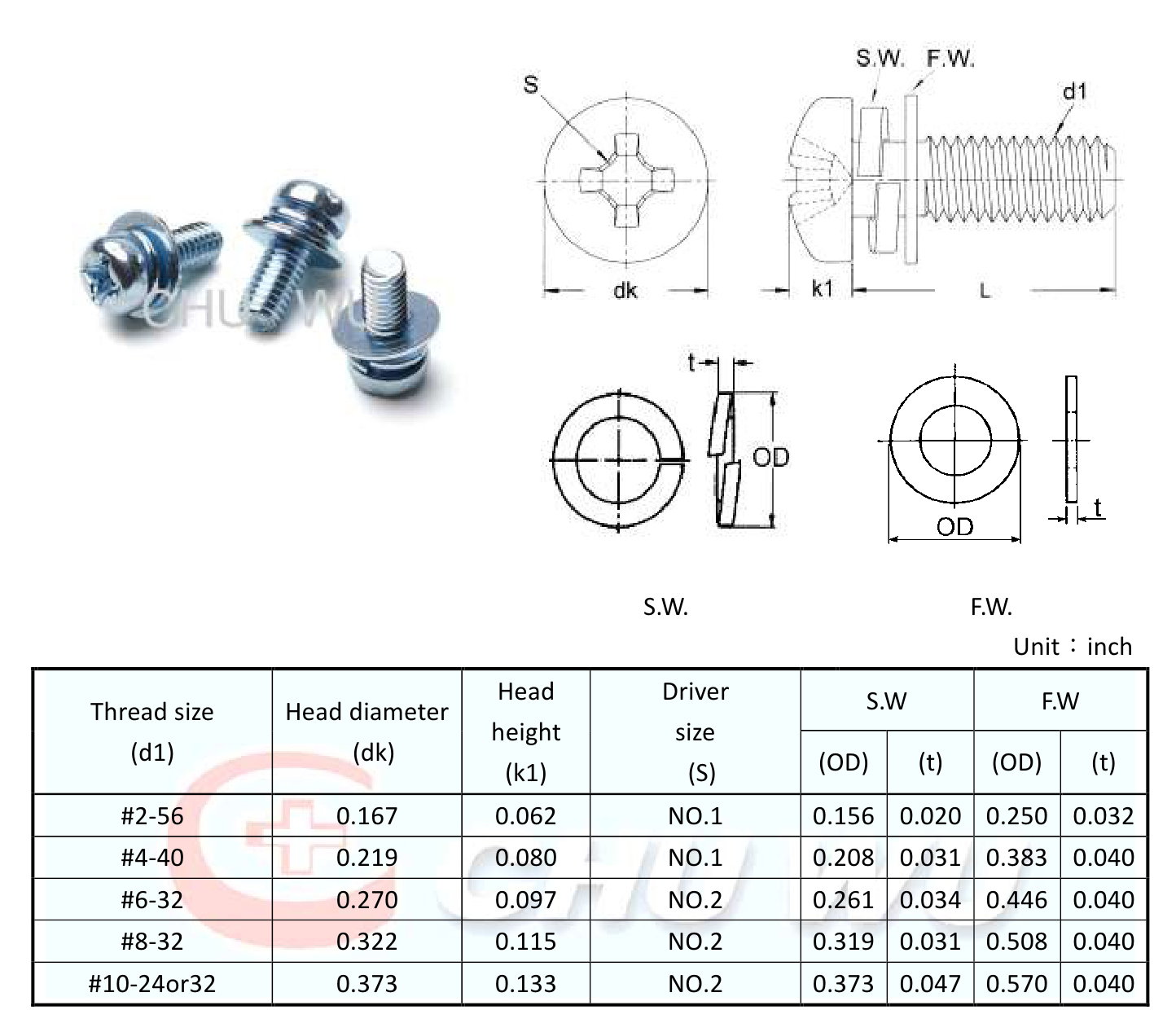

Inch Fastener Pan head screw sems with spring lock washer and flat washer
proimages/sems_screw/DIN7985(inch)sems-1.jpg

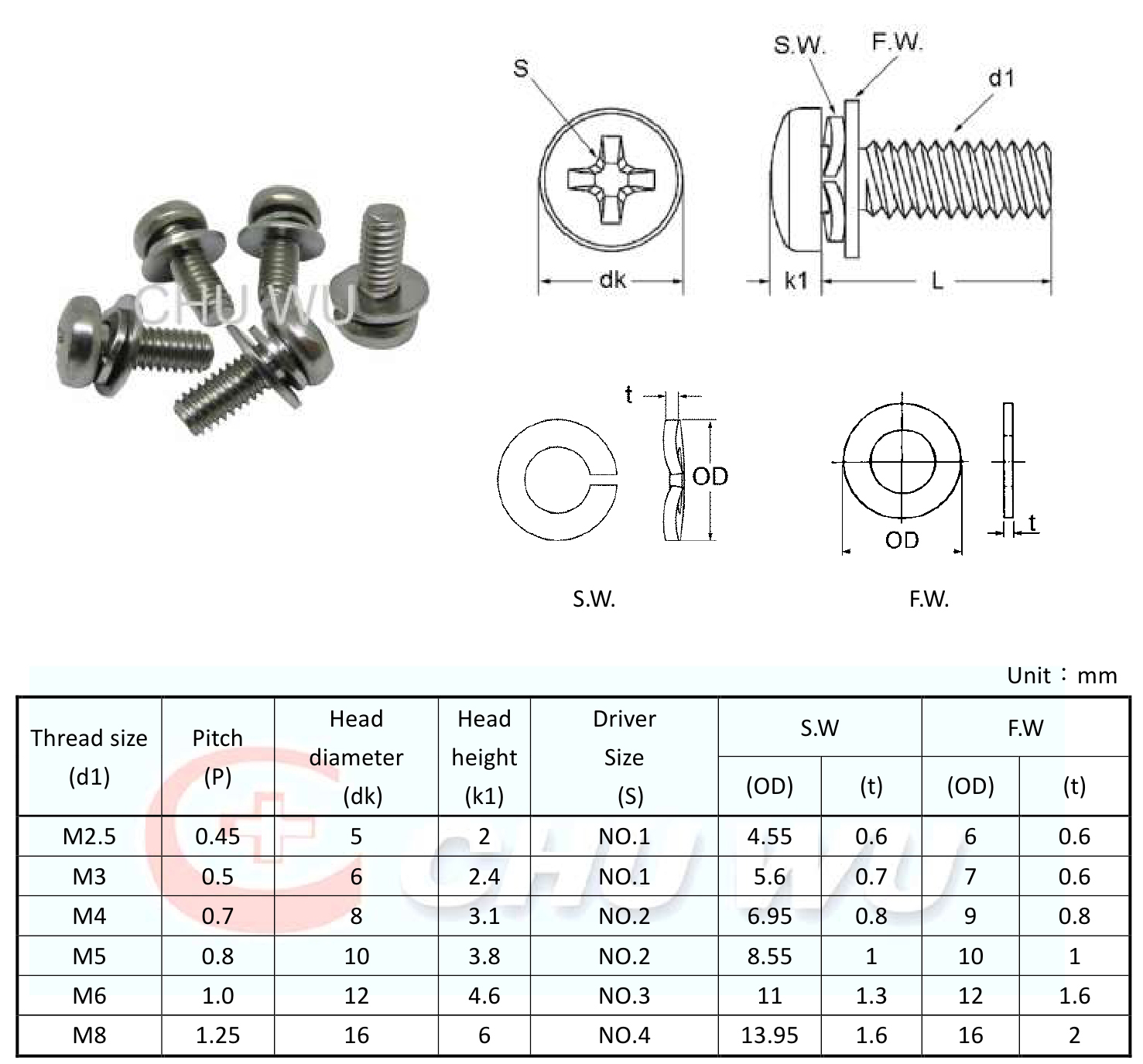

Pan head screw sems with spring lock washer and flat washer according to DIN 6900-3
proimages/sems_screw/DIN7985(6905)sems-1.jpg
