Product Name : Micro screws
Product Description

Features:

* Thread size: 1.0 mm minimum

* Thread type: machine screw, tapping screw, tri-angular screw thread, thread forming screw for plastic, other special thread

* Head type: pan head, flat (countersunk) head, cheese head, wafer head, ultra thin head and other standard or custom head

* Recess: cross recess, slot, hexalobular socket, hex socket …..

* Various material: steel, stainless steel, brass ….

* International standard: ISO, IFI(ASTM, SAE..), DIN, JIS etc

* Customers's design available

* Other demand: Nylon patch (thread locker), assembly with washer, other special proceeding, such as circular proceeding
Product Introduction

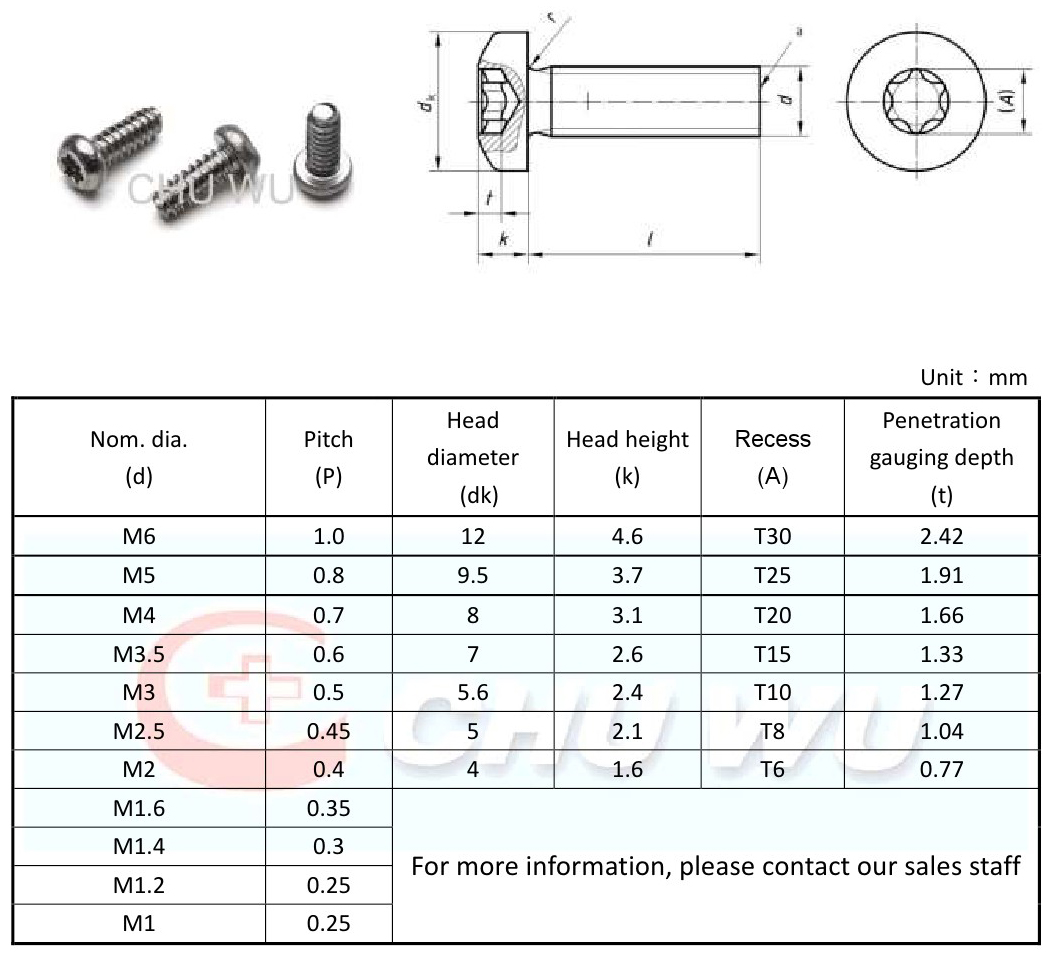

Hexalobular socket pan head screws
proimages/micro_screw/ISO_14583-0.jpg

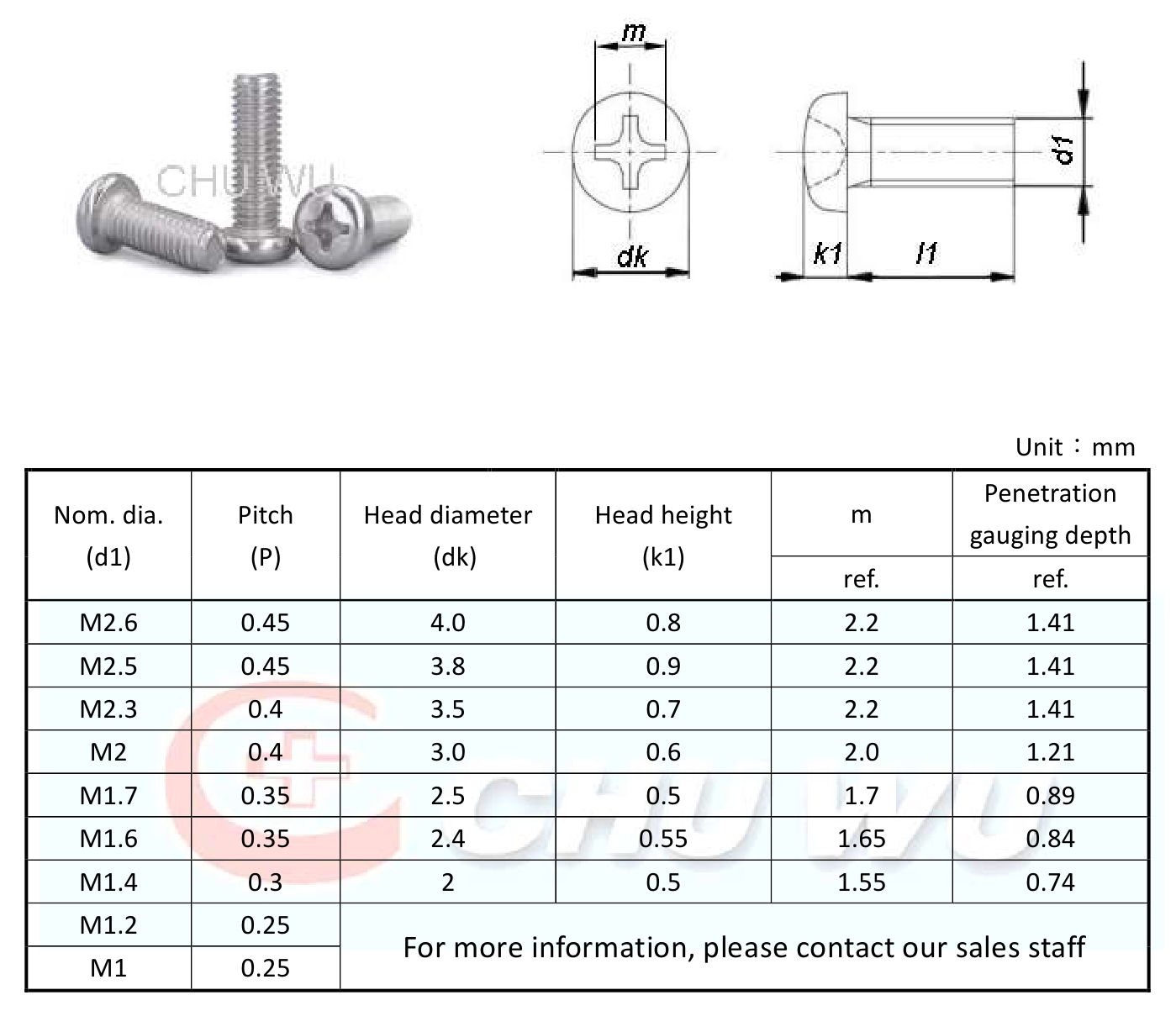

Precision pan head machine screw
proimages/micro_screw/JCIS-1-1.jpg
